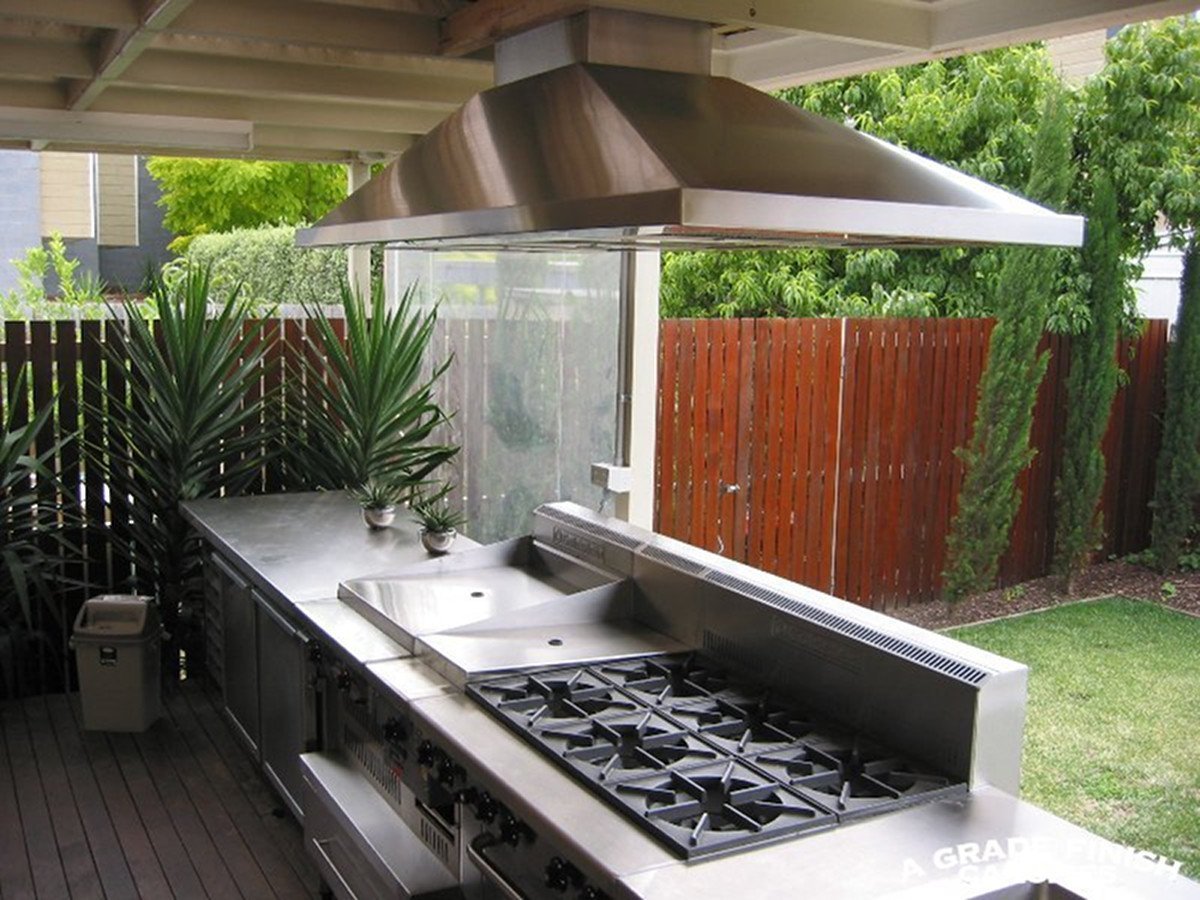

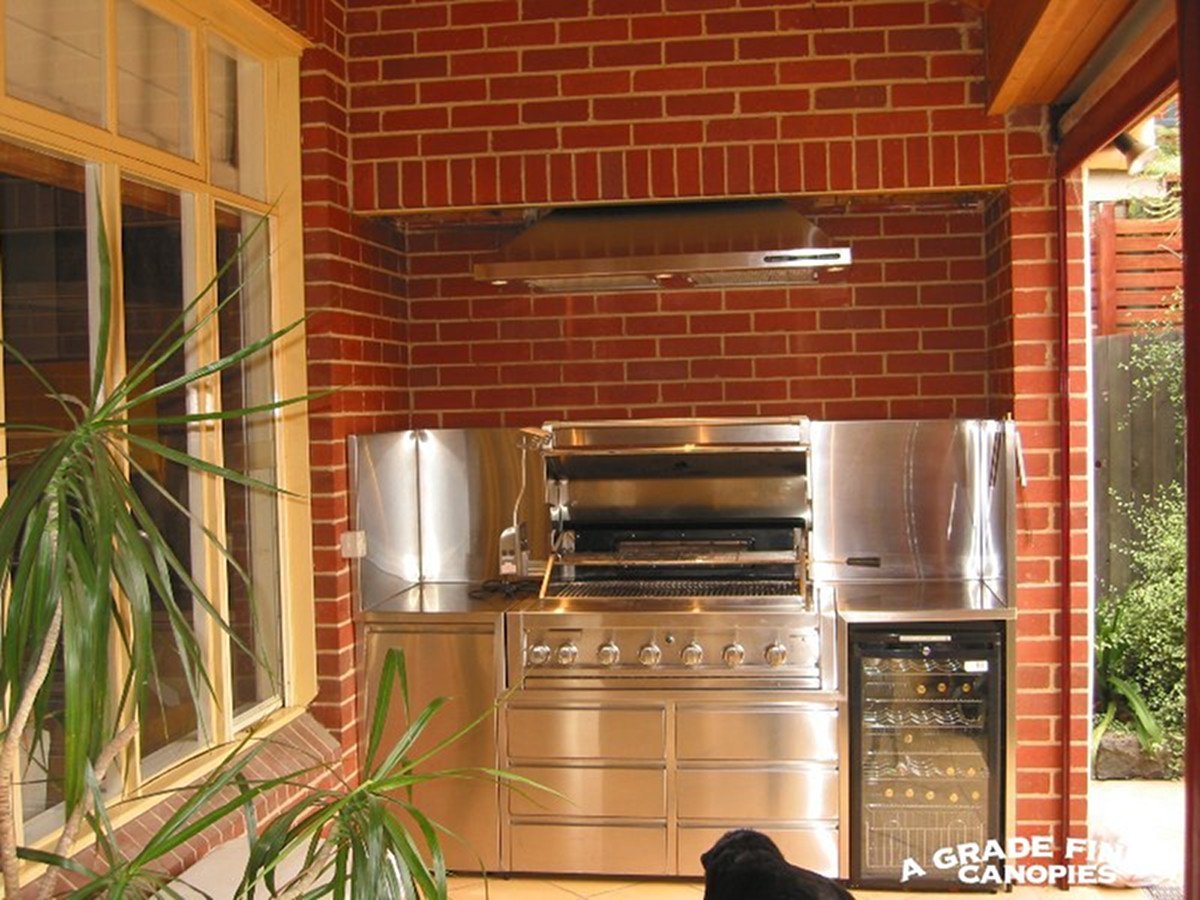

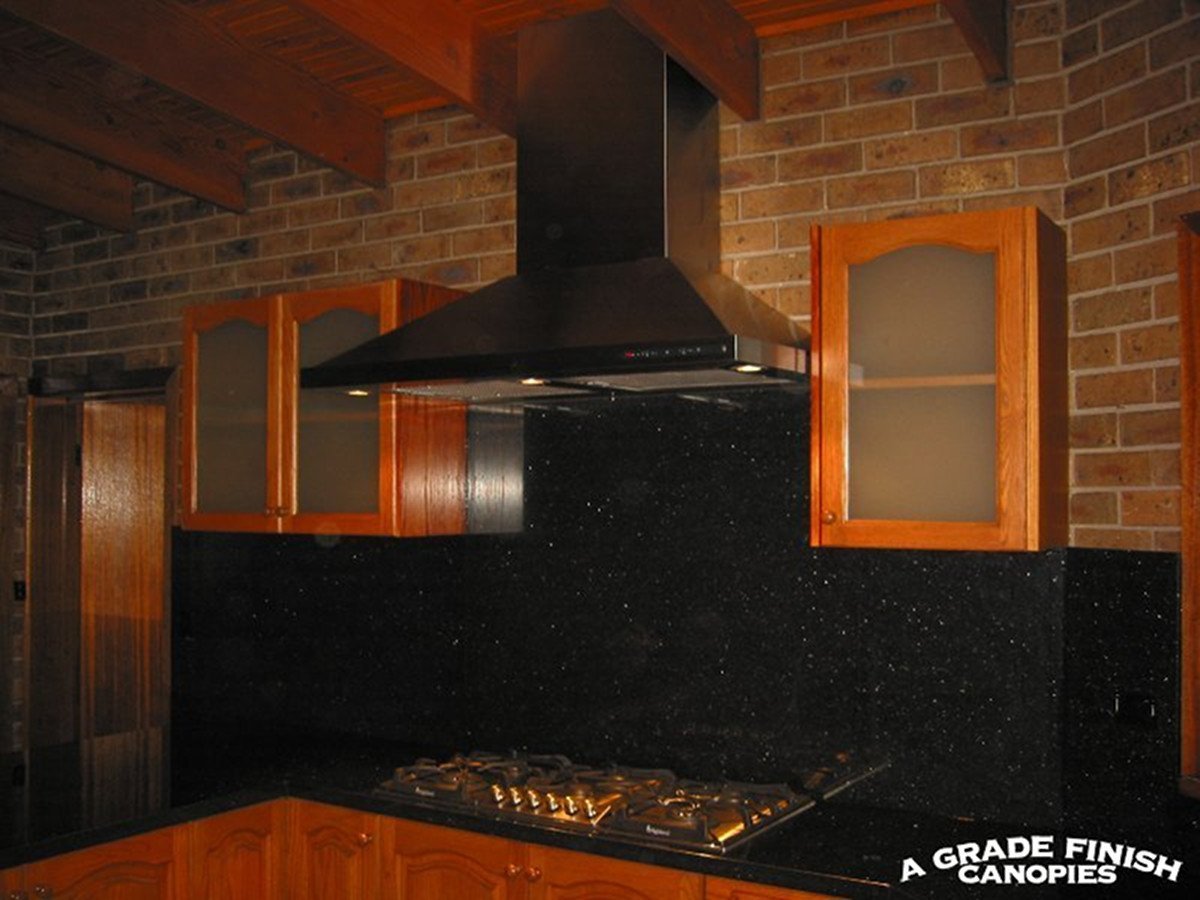

A Grade Finish Canopies 1200 Professional Rangehood

A Grade Rangehoods Are much Deeper and wider than Traditional range hoods. this means they capture a larger amount of air and smoke. The motors on the A Grade models are in the roof, leading to almost silent operations.

Please note if you need a Horizontal Flue (out the back of the unit), The Motors are placed in the rangehood Shroud and runs louder than in roof installations.

• Telescopic flue
• 304 stainless steel construction
• Super quiet roof mount fan
• Massive commercial suction running at 3200m3 per hour
• 2 x 50mm thick commercial honeycomb filters
• 3 speed switch with auto shut off timer
• 3 x 35 watt halogen globes
• 10A (3 pin plug)
• Energy efficient
• 300mm diameter ducting
•  2 year warranty

Australian engineered to last and outperform

A Grade Finish Canopies General Rangehoods Installation Guide

A Grade Finish Canopies 1200 Professional Installation Guide

Please Note price includes Flue and Ducting.

Please add Flashing Type to suit roof type.

Flue and Ducting kit included

2 x 50mm Thick Filters & external weatherproof
Roof Fan exhausting 3200m3 per hour
1 x Telescopic Flue Height (896-1500mm)
1 x Spigot
1 x Top Flue Support
1 x Solid Duct 1000mm
1 x Flexi Duct 5m
1 x Duct Support
1x Joiner for Flexi Ducting

Dimensions

(WxDxH) 1200mm x 850mm x 896-1500mm

Note:
BBQ Rangehoods should be installed no less than 1200mm (minimum) above your cooking surface. This is due to flare ups caused by oils and fats dripping down over the exposed gas fire.
