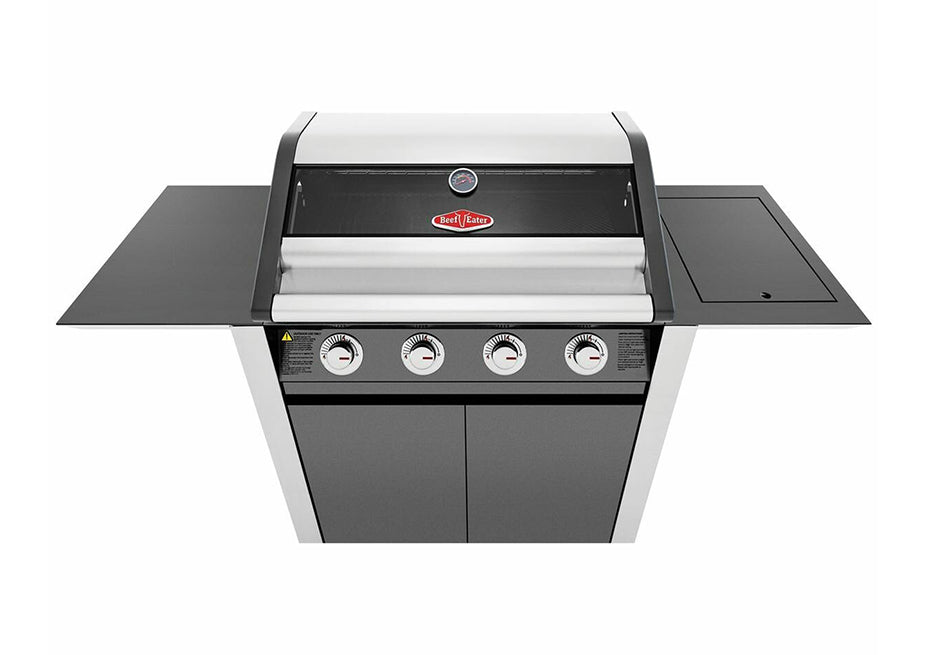

Beefeater 1600 Series Dark 4 Burner BBQ on Trolley

Beefeater 1600 Series Dark 4 Burner Built In BBQ - BBG1640DA

• Graphite powder coated Finish

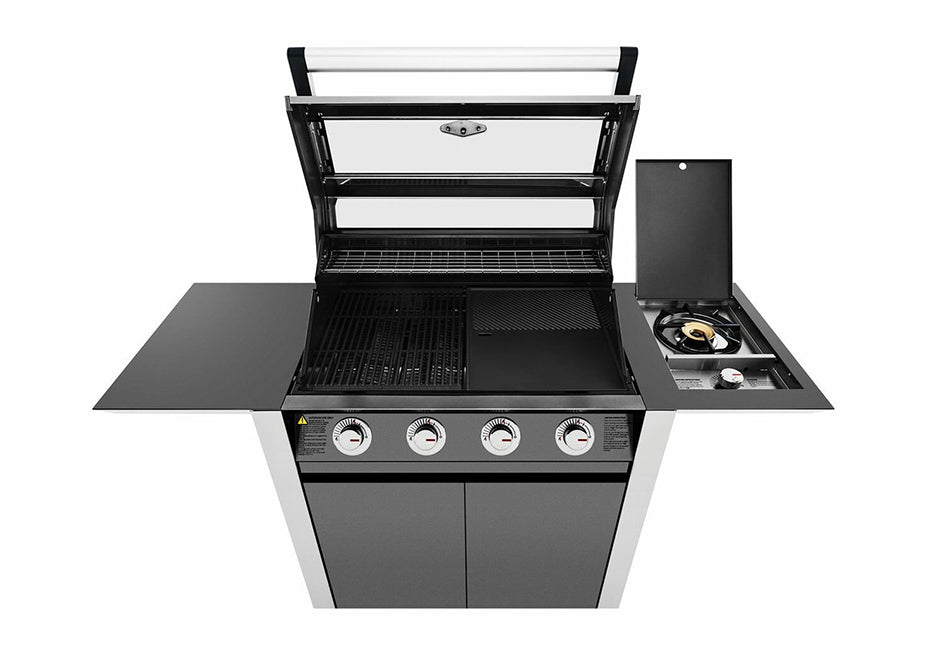

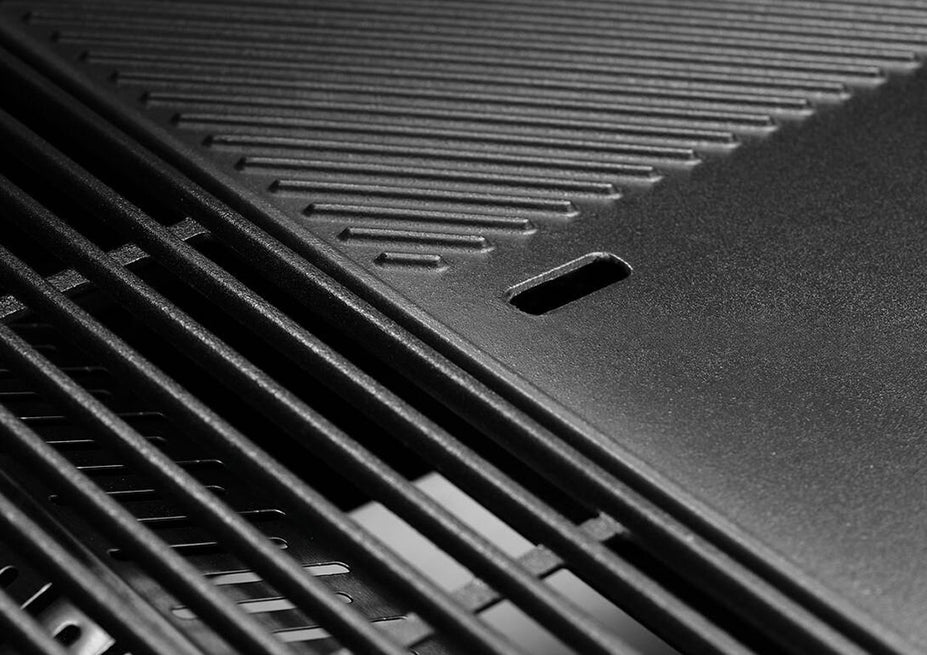

• Porcelain enamelled cast iron hotplate - 50 % grills / 50% Plate

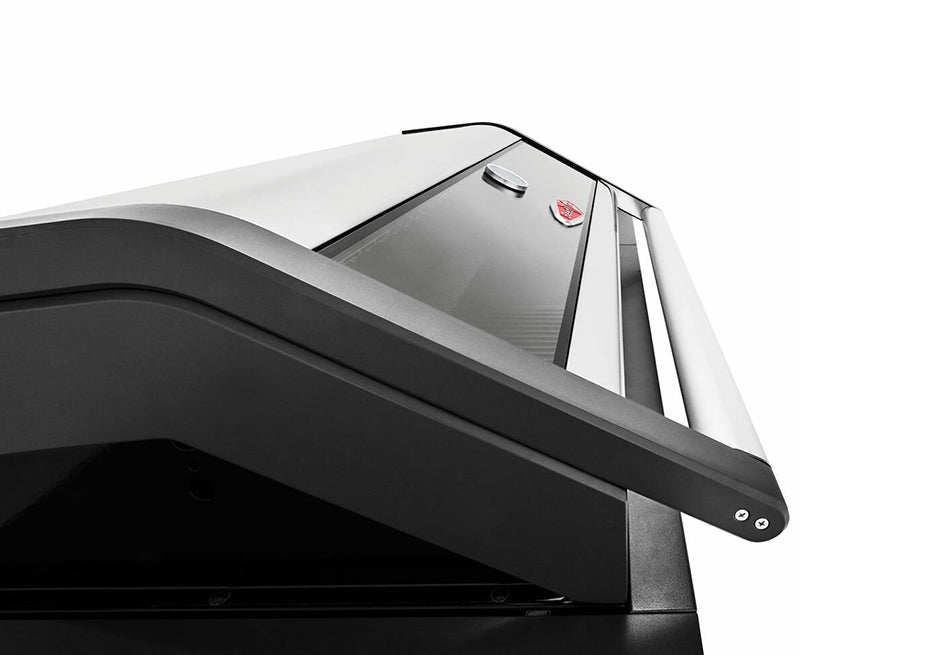

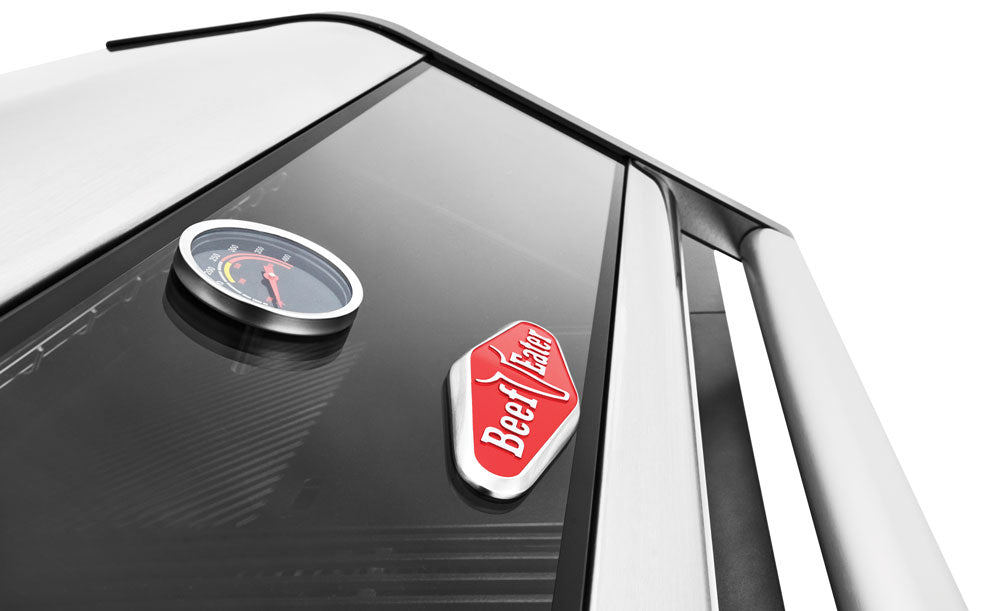

• Double layer rollback hood with glass viewing window & temperature gauge
• Elevated Multifunctional Cooking Rack

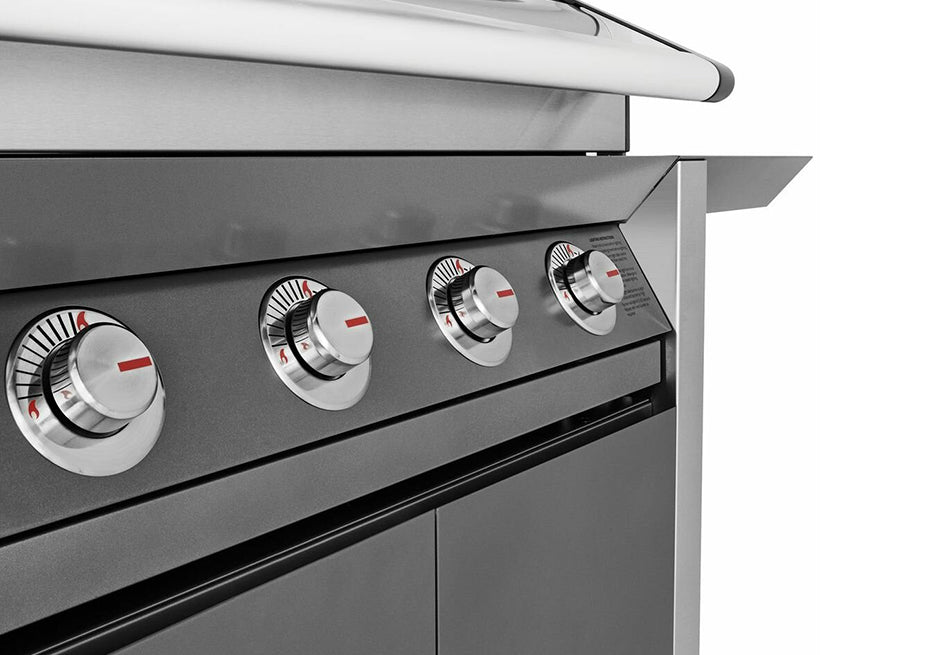

• Individual zinc cast iron control dials with clear heat level graphics
• Quartz One Start Ignition on all burners
• Fully seam welded vitreous enamel fire box
• Front access, full width drip tray
• 17MJ Cast Iron Burners with Stainless Steel Vaporisers
• LPG (Bottle Gas) ready - Natural Gas Kit available
• Large Cooking Area 3840 cm
• Trolley Features Bump Trolley with two door storage cabinet

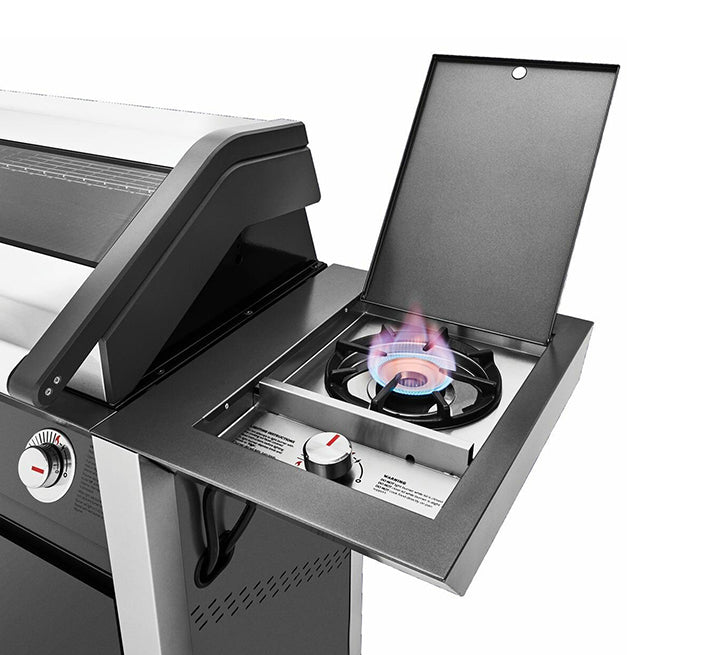

• Integrated side burner
• Trolley Construction Stainless steel. powder coated stainless steel

BURNERS

• Cast iron Burner material
• Quartz Start Type of Ignition
• Burner power (MJ/hr)17
• Total burner power (MJ/hr)68
• Flame tamer made from Stainless steel
• Side burner power (BTU)14217
• Total burner power (BTU) 64541
• Burner power (BTU) 14217

DIMENSIONS

Total height (with lid closed) (mm) 517
Total height (with lid open) (mm) 903
Total height (mm) 903
Total width (mm) 804
Total depth (mm) 555
Total cooking area (cm2) 3840

Download Manual

Install Note

The barbecue can The barbecue can be mounted into the enclosure by using the BeefEater hanging bracket kit BA70HS or by resting the barbecue directly on its base
