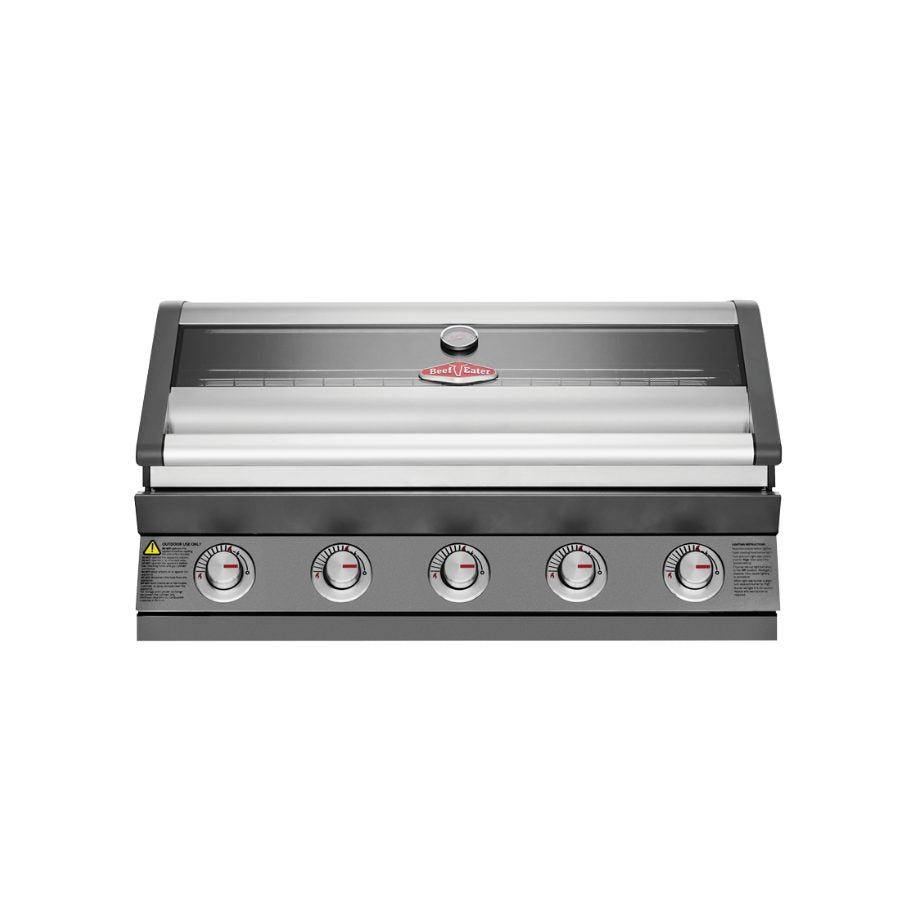

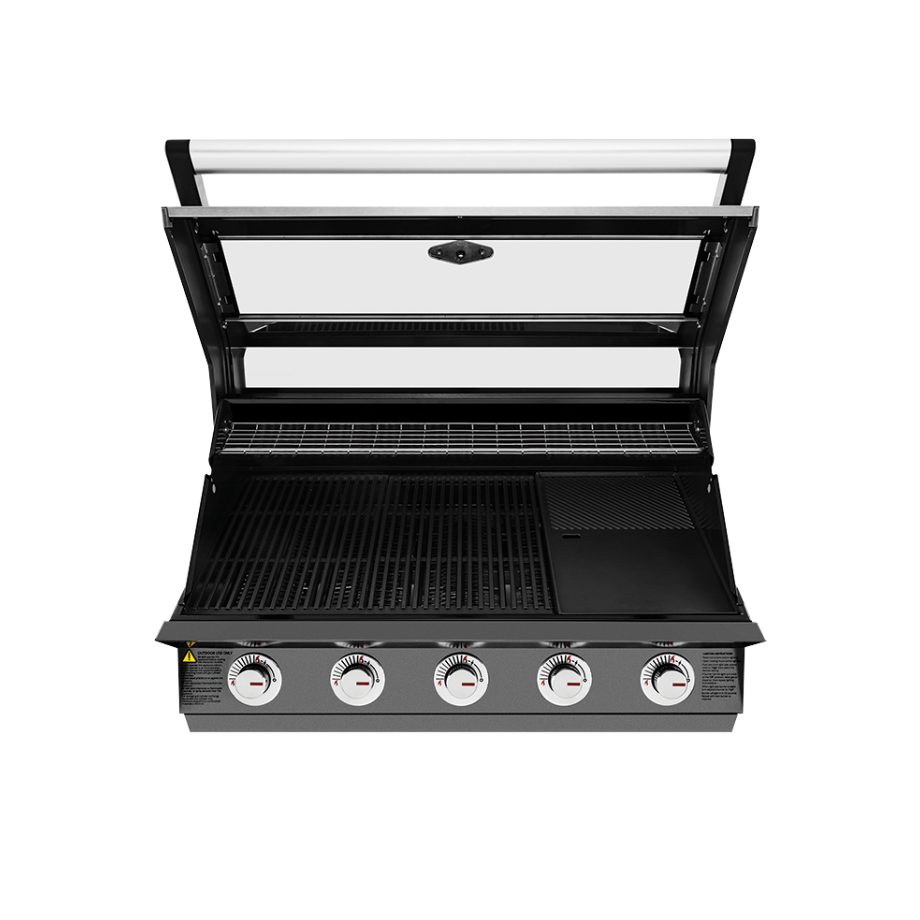

Beefeater 1600 Series Dark 5 Burner Built-In BBQ

Beefeater 1600 Series 5 Burner Built In Dark BBQ - BBG1650DA

• Graphite powder coated Finish

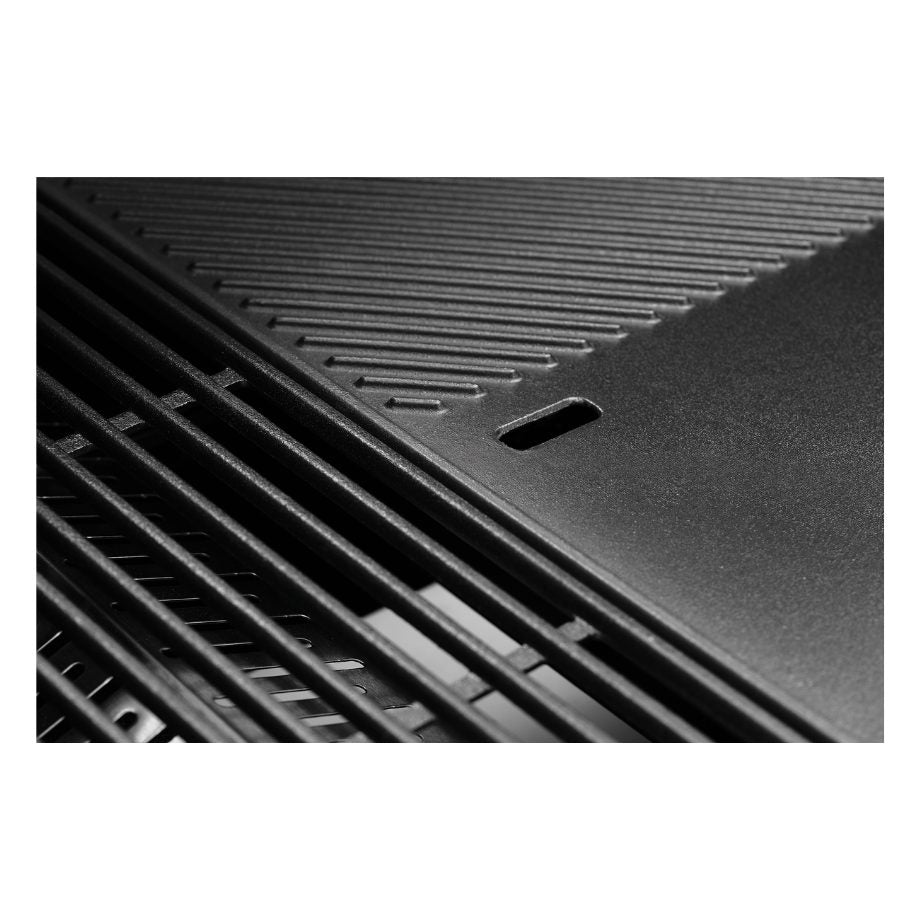

• x 1 Porcelain enamelled cast iron hotplate 320 x 480
• x 2 Porcelain enamelled cast iron Grills 320 x 480 each

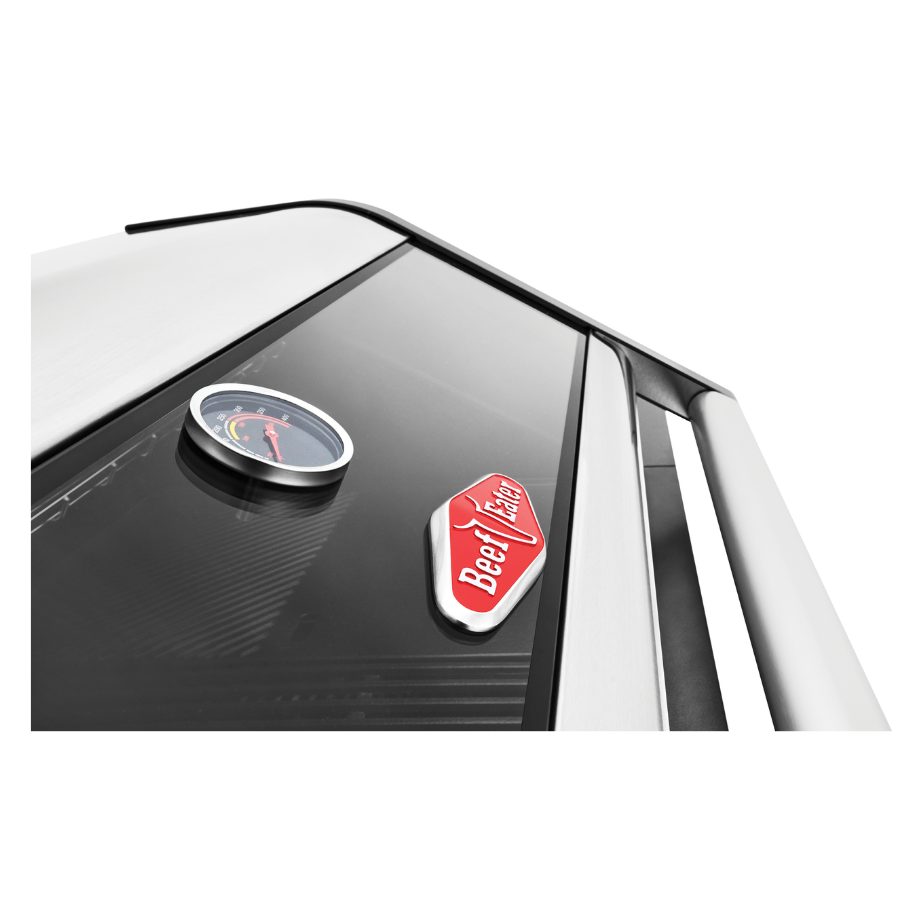

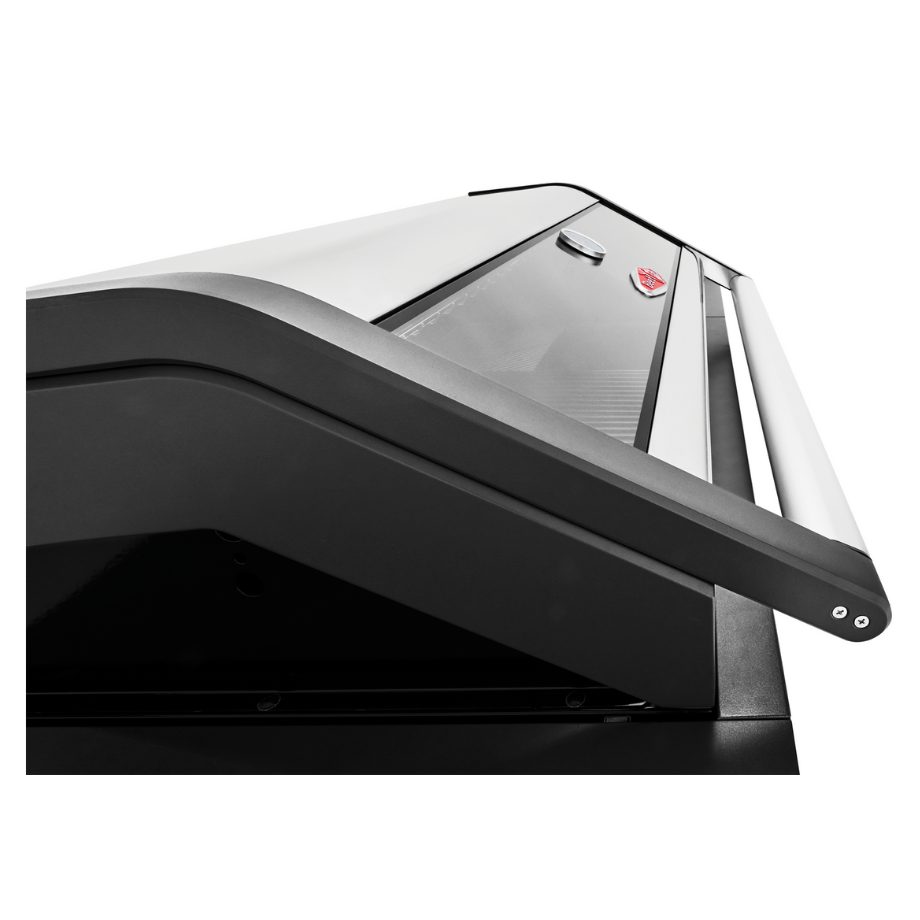

• Double layer rollback hood with glass viewing window & temperature gauge
• Elevated Multifunctional Cooking Rack

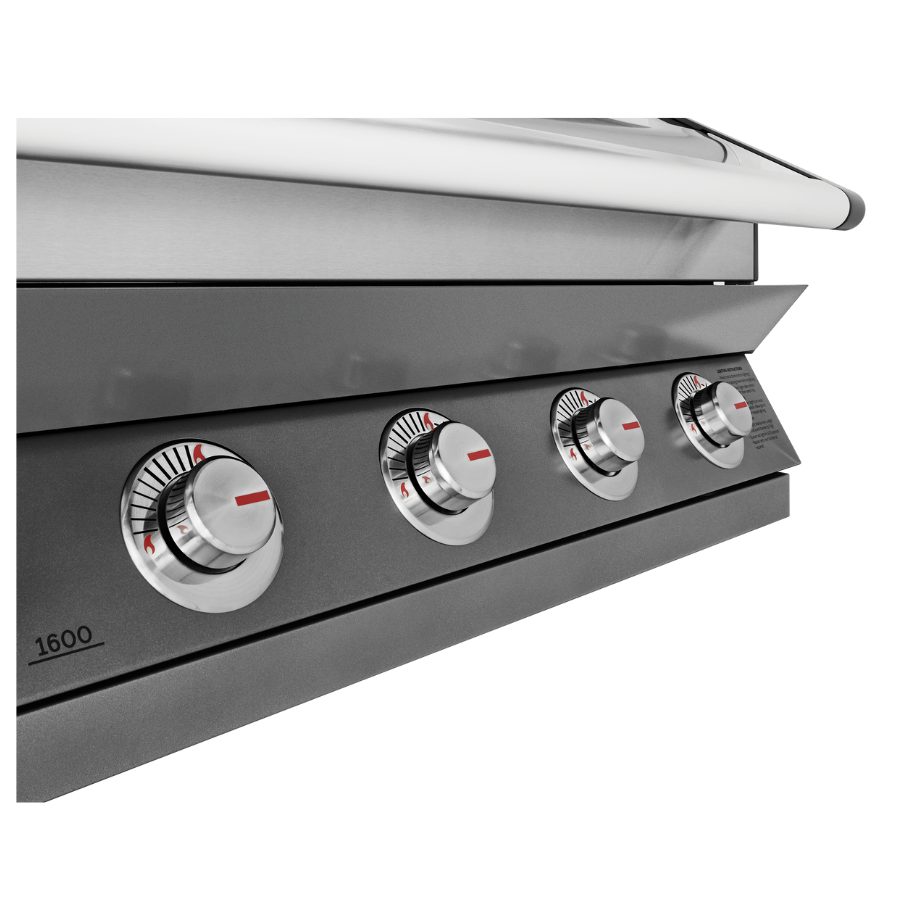

• Individual zinc cast iron control dials with clear heat level graphics
• Quartz One Start Ignition on all burners
• Fully seam welded vitreous enamel fire box
• Front access, full width drip tray
• 17MJ Cast Iron Burners with Stainless Steel Vaporisers
• LPG (Bottle Gas) ready - Natural Gas Kit available
• Large Cooking Area 3840 cm

BURNERS

• Cast iron Burner material
• Quartz Start Type of Ignition
• Burner power (MJ/hr)17
• Total burner power (MJ/hr) 85
• Flame tamer made from Stainless steel
• Total burner power (BTU) 80565
• Burner power (BTU) 14217

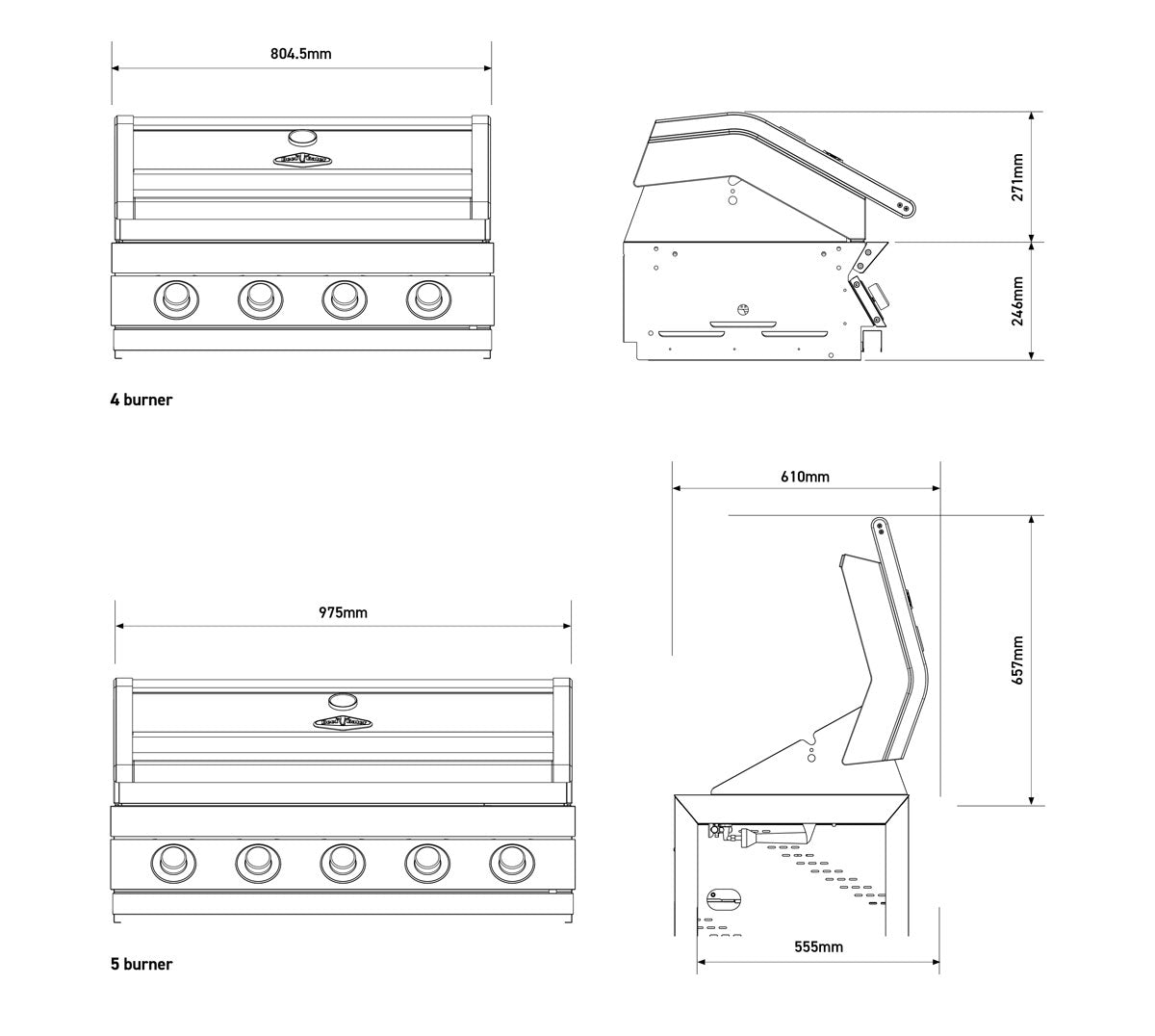

DIMENSIONS

Total height (with lid closed) (mm) 517

Total height (with lid open) (mm) 903
Total height (mm) 903
Total width (mm) 975
Total depth (mm) 555
Total cooking area (cm2) 4608

Manual Download

Install Note

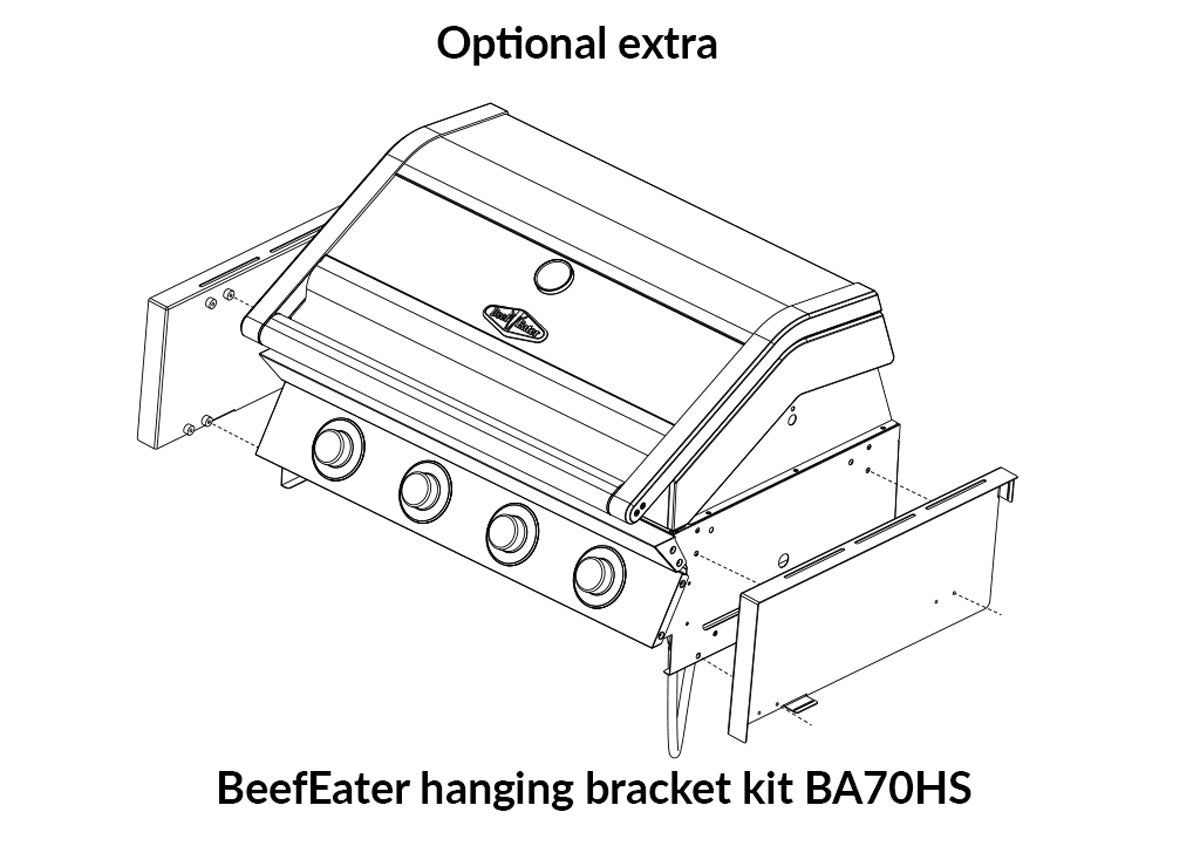

The barbecue can The barbecue can be mounted into the enclosure by using the BeefEater hanging bracket kit BA70HS or by resting the barbecue directly on its base
