Crossray Compact Outdoor Kitchen with 2 Burner Gas BBQ

Description

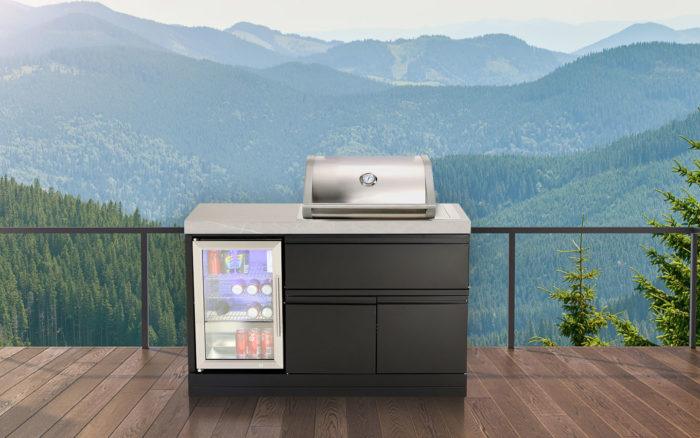

The New CROSSRAY Mini Outdoor Kitchen with the new 2 Burner Drop In gas BBQ elevates outdoor cooking to a whole new level – perfect for your, courtyard or alfresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.

Features:

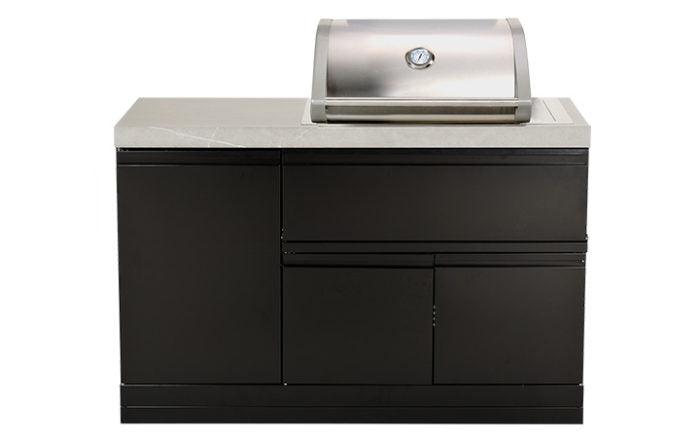

• Complete, compact outdoor kitchen featuring a flush-mounted CROSSRAY 2B gas BBQ, option for single fridge, with stone benchtop and under-bench storage.

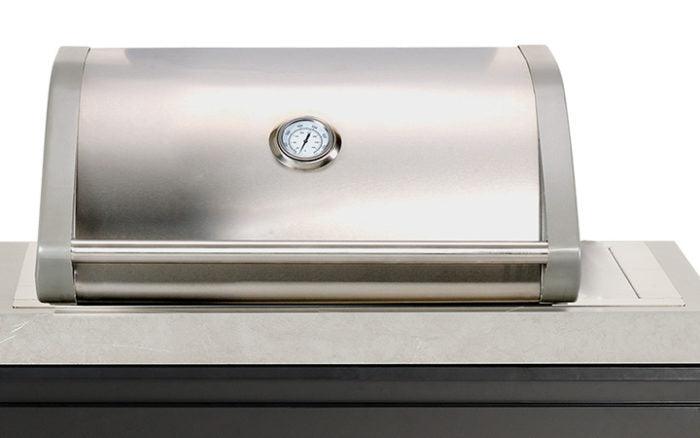

• High intensity, high temperature output gas BBQ – in-built so that it is flush with the benchtop.

• Features a high quality sintered stone benchtop (60mm edge) and 63L single SS fridge with temperature control, triple glazing, blue LED back-lighting and lockable.

• Perfect for smaller backyards & alfresco areas, townhouses, balconies & apartments.

• Cabinet includes a drop down top shelf and 2 door storage space underneath (with magnetic closure). Cabinets upgraded to zinc coated/powder coated steel to ensure corrosion protection.

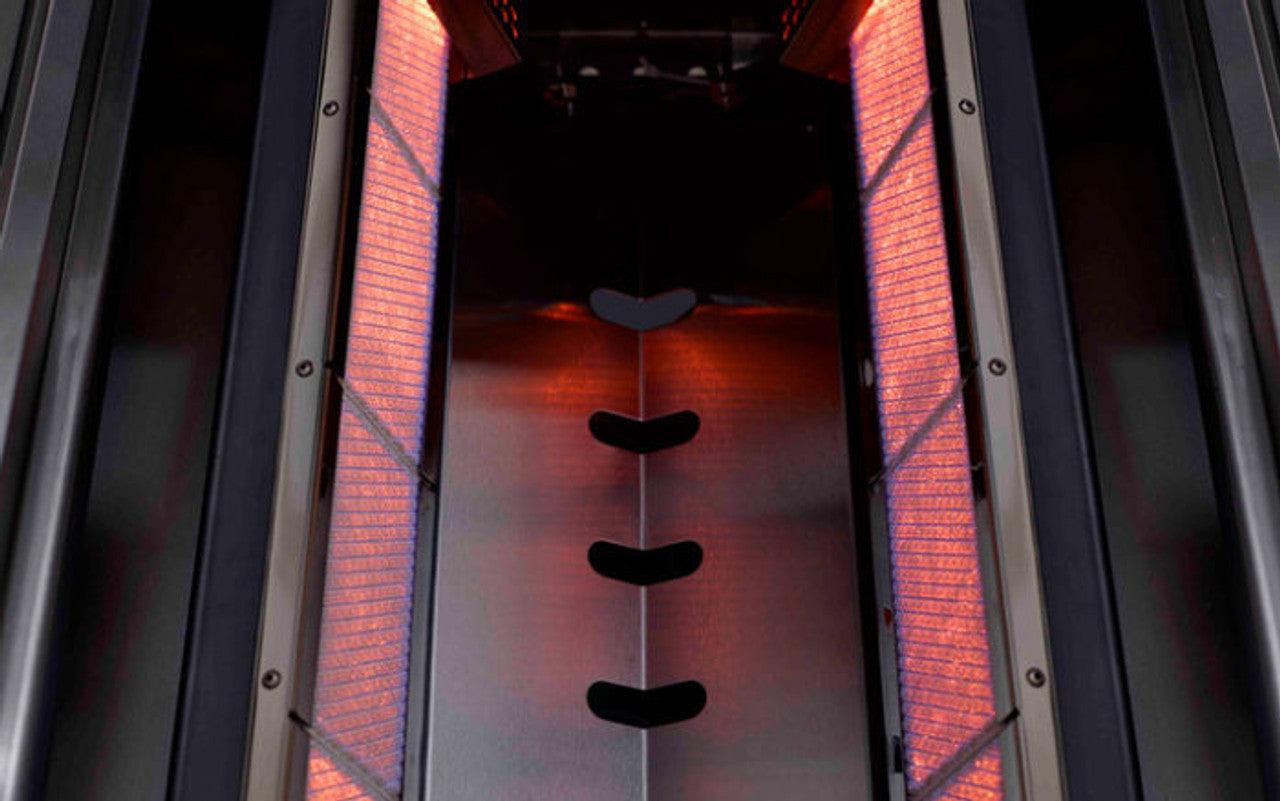

• 2B flush mounted BBQ, 2 x 13MJ angled ceramic infrared burners. Flame failure included as standard and meets indoor code.

• BBQ with dual level cooking surfaces, double skin hood, 140C to 350C+ temperature output.

• Electronic ignition with knobs in a concealed control panel next to the BBQ. Front kickboards included as standard. Side kickboard optional.

• Cook with the lid up or down. Plenty of hood height for large meats. Compatible with a rotisserie. NG conversion and top access conversion kits available.

Specifications

Dimensions : 1385mm (W) x 610mm (D) x 1403mm (H)

Cooking area: 3556cm2

Weight:
TC2K-MK1 - 131kgs
TC2K-MK2 - 102.3kgs

Outdoor Kitchen Materials:

• 304 Stainless Steel front and rear body panels.

• Die cast aluminium side and end panels.

• 2 x surface combustion infrared burners.

BBQ and Burners:

• Burner capacity 13 MJ/hr each (total 26 MJ/hr).

• Includes BBQ head only.

• 2 x BBQ grills and 2–piece SS upper cooking rack included.

Manuals

Crossray Outdoor Kitchen Brochure.pdf
